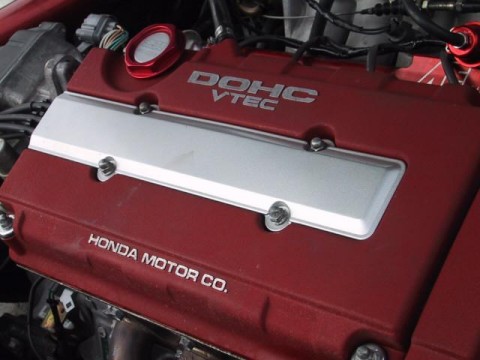

Honda's VTEC system is a simple and fairly elegant method of endowing the engine with multiple camshaft profiles optimized for low and high RPM operations. Instead of only one cam lobe actuating each valve, there are two - one optimised for low RPM smoothness and one to maximize high RPM power output. Switching between the two cam lobes is controlled by the engine's management computer. As engine RPM increases, a locking pin is pushed by oil pressure to bind the high RPM cam follower for operation. From this point on, the valve opens and closes according to the high-speed profile, which opens the valve further and for a longer time. The VTEC system was originally introduced as a DOHC system in the 1989 Honda Integra sold in Japan, which used a 160 hp (119 kW) variant of the B16A engine. The US market saw the first VTEC system with the introduction of the 1990 Acura NSX, which used a DOHC V6. The DOHC VTEC system has high and low RPM cam lobe profiles on both the intake and exhaust valve camshafts. This resulted in the most power gain at high RPMs and DOHC VTEC engines were thus used in the highest performance Honda automobiles. In contrast to the SOHC implementation which switches between cam profiles seamlessly, when the DOHC version switches cams there is a definite change in the engine note.
